Airport Baggage Systems Overview
USA - Canada - Caribbean - Mexico
Our baggage conveyors are at work in airports throughout the world ensuring that baggage is optimally sorted and transported from check-in to take-off and returned to the passenger as quickly as possible after landing.
Quality, security, speed and reliability are what count here. For this reason, we develop the ideal hardware and software to meet individual job specifications. We ensure peak values with the highest possible level of functional security, high degree of comfort, easy maintenance and long life span. Consequently, we also ensure peak values in terms of the cost-effectiveness.
To contact Franz Metzler:
Ph: 905.352.2020
Fax: 866.479.2544
Email: info@b-finc.com
Individual System Modules
Snake - back to top

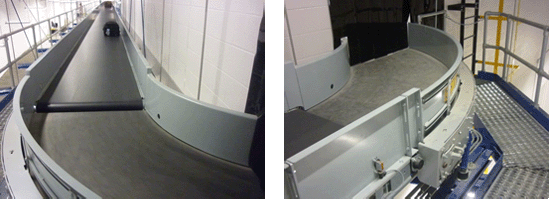

Belt Curv
Agile like a snake and confident at any angle
With a conveyor speed of up to 2.5 m/s, agility and resilience are needed everywhere and particularly at curves. The B&F belt curve »Snake« can be used in the continual transportation of baggage and general cargo involving a change in direction. During the development of the belt curve, a huge amount of attention was placed on ensuring the smallest space requirement for integration and ultra-simple accessibility.
Product Features
- Ultra-simple adjustment to required installation conditions
- Maintenance-free guide system
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- Within the entire baggage conveyor system
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Nominal width up to 1,500 mm
- Inside radius up to 1,500 mm
- Angles 30°, 45°, 60°, 90°
- Impetus through slip-on gear drive Speed of conveyor up to 2.5 m /s
- Baggage weight up to 50 kg
Buffalo - back to top

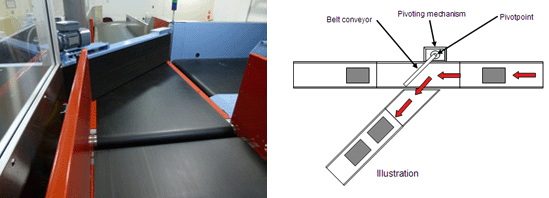

Diverter
Powerful and persistent like a buffalo
With its sophisticated technology, it achieves a capacity of up to 4800 pieces of baggage per hour. The B&F diverter »Buffalo« was designed for the most demanding jobs in the airport. The outstanding performance of the frequency-regulated swivel drive ensures very precise acceleration and deceleration of the paddle. Working together with the cushioned paddle design ensures that the baggage is handled carefully.
Product Features
- Deflection procedure that is gentle on baggage
- Low-maintenance swivel system
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
- Fields of Use
Airport Solutions:
- For sorting onto destination chutes
- Division of the line
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Throughput capacity up to 4,800 units/h
- Paddle length approx. 1,550 mm
- Paddle height approx. 250 mm
- Baggage weight up to 60 kg
Giraffe - back to top
Baggage Lifter
As dynamic and capable as a giraffe
Overcome heights safely and precisely. With its precise and efficient lifting unit, the B&F baggage lifter »Giraffe« performs a real show of strength - with ease! The conveyor element incorporated into the baggage lifter is lifted and lowered precisely using a lifting unit with two steel-reinforced tooth belts. This maintenance free lifting system has been tried and tested for decades. Between the two upper and lower end positions, any intermediate destinations can be reached. The light, but robust, box girder of the lifting masts, which is designed to be divisible in its height, forms the backbone of the baggage lifter with the guide rails. It is also possible to use it in flight baggage systems with a container system. An appropriate conveyor element is incorporated to do this.
Product Features
- Low starting heights
- Ultra-simple adjustment to required input and output positions
- Maintenance-free lifting system with tooth-belt drive
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Lifting mast as box girder in divided and screwed design
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- For all non-continuous vertical transportation tasks
- For example, in check-in areas
- For example, outward transfer of baggage for follow-up checks
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Speed up to 3 m/s
- Acceleration up to 5 m/s
- Width of conveyor element up to 1,400 mm
- Length of conveyor element up to 3,000 mm
- Lifting height up to 10,000 mm
Kangaroo - back to top
Flat Plate Carousel
Tireless like a kangaroo
When sorting and loading flight baggage, the highest level of reliability and dependability is required. The B&F carousel »Kangaroo« was developed specifically for use in airports and is a real specialist. During development, one of the main focuses of attention was on the modular concept with convex and concave curves in order to effectively use the available space. With a noise level of 60 dBA, the carousel is one of the quietest of its class.
Product Features
- Ultra-simple adjustment to required installation conditions
- Horizontal or sloping design
- Casing can be steel-coated or stainless steel
- Low-maintenance friction drive
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- Carousel for baggage reclaim
- Carousel for baggage sorting
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Conveyor speed up to 0.5 m/s
- Conveyor length up to 100 m per drive
- Loading height 400 mm
- Operating width 1,000 mm
- Baggage weight up to 50 kg
Puma - back to top
Vertical Distributor
Strong and fast like a puma
With a capacity of up to 2000 pieces of baggage per hour, strength and resilience are needed. The B&F vertical distributor »Puma« is used for the distribution and merging of baggage and general cargo between two or three levels. The belt conveyor incorporated into the vertical distributor is lifted and lowered using a lifting system with two steel-reinforced tooth belts. This maintenance-free lifting system has been tried and tested for decades. It is also possible to use it in flight baggage systems with a container system. The belt conveyor is replaced by an appropriate conveyor element for the purposes of this.
Product Features
- Ultra-simple adjustment to required input and output positions
- Maintenance-free lifting system with tooth-belt drive
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- In key locations after the x-ray equipment
- Distribution and merging of conveyor lines
- Distribution and merging of bulky baggage
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Swivel time less than 1 sec.
- Throughput capacity up to 2,000 units/h
- Conveyor speed up to 2 m/s
- Conveyor length up to 5,000 mm
- Belt width up to 1,500 mm
- Baggage weight up to 75 kg
Luggage from conveyor 1 is distributed to conveyor 2 or 3. Or: Luggage from conveyor 2 or 3 is merged to conveyor 1.
Beaver - back to top
Vertical Belt Deflector
Striking and powerful like the beaver's tail
Sophisticated technology that has multiple talents and a capacity of up to 1450 pieces of baggage per hour. The B&F vertical diverter unit »Beaver« is used to distribute baggage or general cargo from a conveyor line or redirect a conveyor for reasons of redundancy. The flawless interplay between the supplying belt conveyor and vertical belt conveyor deflector belt with its swivel mechanism is decisive here. The vertical belt conveyer deflector is assembled above a standard belt conveyor with the appropriate gap.
Product Features
- Ultra-simple adjustment to required installation conditions
- Low-maintenance swivel system
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- Outward transfer from belt lines
- Line diverter on redundant lines
- In key locations after x-ray equipment
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Swivel time approx 1 sec.
- Throughput capacity up to 1,450 units/h
- Conveyor speed of swivel belt up to 1.8 m/s
- Belt length of swivel belt up to 2,300 mm
- Baggage weight up to 60 kg
Shark - back to top
Horizontal Distributor
The shark's fin makes the difference
Perfect solution for the distribution on one level of up to 1200 pieces of baggage per hour. The B&F horizontal distributor »Shark« is used between two horizontal conveyor lines. Baggage or general cargo is distributed or merged. The belt conveyor incorporated into the horizontal distributor is swivelled using a swivel system with steel-reinforced tooth belts. This maintenance-free system has been tried and tested for decades. It is also possible to use it in flight baggage systems with a container system. The belt conveyor is replaced by an appropriate conveyor element for the purposes of this.
Product Features
- Ultra-simple adjustment to required input and output positions
- Maintenance-free swivel system with tooth-belt drive
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- In key locations after the x-ray equipment
- Distribution and merging of conveyor lines
- Distribution and merging of bulky baggage
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Swivel time approx. 1 sec.
- Throughput capacity up to 1,200 units/h
- Conveyor speed up to 2 m/s
- Conveyor length up to 5,000 mm
- Belt width up to 1,500 mm
- Baggage weight up to 75 kg
Dragonfly - back to top
Inclined Conveyor
Agile and delicate like a dragonfly
Unique and with the lightness of the dragonfly - this is how the B&F inclined conveyor »Dragonfly« works, quickly and safely overcoming any height difference. The inclined conveyor transports flight baggage directly to the passenger boarding bridge, meaning it can be used in direct proximity to the aircraft. Baggage or similar general cargo is either safely lifted onto the aircraft or lowered onto the apron. Staff must no longer carry the baggage up and down the sometimes wet or icy stairs in any weather.
Product Features
- Ultra-simple adjustment to required installation conditions
- Low-maintenance lifting system with double chain drive
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
On service stairs for passenger boarding bridges
Technical Data
- Speed of conveyor approx. 0,3 m/s
- Conveyor length up to 7,000 mm
- Conveyor height up to 6,000 mm
- Baggage weight up to 50 kg
Zebra - back to top
Merge Belt
Fast like a zebra
From 0 to 3.0 metres per second. Like no other, the B&F merge belt »Zebra« puts baggage on the right track like no other. It is exactly this construction - the design as an adjoining merge point - that can provide the fundamental advantage of operational safety. In the case of one strip being damaged, the system continues to work flawlessly. When connected to a belt deflector, the diagonal junction can also be used to transfer baggage at different angles.
Product Features
- High level of operational safety through the strip design
- Extremely short construction lengths possible
- Very low construction height (approx. 130 mm)
- Cyclic operation possible
- "EIS system"”: rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- Feeding baggage onto conveyor lines at different angles
- Feeding baggage onto sorters at different angles
- Distributing baggage in connection with a belt deflector at different angles
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Conveyor speed up to 3 m/s
- Angles 30°, 45°, 60°
- Belt width up to 1,500 mm
- Baggage weight up to 75 kg
Eagle - back to top
Hand Baggage Checks
With the piercing gaze of an eagle
And this is exactly what makes the difference. The B&F hand baggage check »Eagle« conforms to the latest standard of technology and requires minimal staff involvement for handling. The defined field of use is automated hand baggage transportation into containers with automatic container return. This keeps the manual handling of the containers to a minimum. The security personnel can focus entirely on checking passengers and baggage.
Product Features
- Ultra-simple adjustment to required installation conditions with modular system
- Very short installation length due to arch-shaped outlet
- Can be combined with all conventional x-ray machines
- Maintenance-free conveyor system with modular bands
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- In the hand baggage and passenger security checking area
Industrial Solutions:
- For security checks at harbours
Technical Data
- Throughput rate up to 300 passengers/h
Q-Conveyor (Ant) - back to top
Metering Belt
Dynamic and flexible like an ant
Whether straight, ascending or descending - the B&F metering belt »Ant/Q-Conveyor« transports flight baggage and general cargo on all conveyor routes. As a modular system, the belt conveyor can satisfy a huge range of requirements. The standard design includes the modules of head drive or mid drive, reversing station, standard tray, fitted tray and support or hanger. The junctions between the individual conveyors are equipped with individual junction plates. The tightening station on the head drives and reversing stations must be tightened from both sides in the basic system. The tightening station on the mid drives can be tightened on one side.
Product Features
- Short construction lengths from approx. 670 mm conveyor length with, e.g. a belt width of 1000 mm possible
- Low construction height possible with integrated belt track device (approx. 130 mm)
- Elevated design or suspension of the ceiling, including individual height and angle adjustability
- Maintenance-free due to lifetime lubricated bearings and optionally mechanical belt track device
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design by using head drives
- Optional running control integrated into the drum bearing
Fields of Use
Airport Solutions:
- Conveyor lines within the entire baggage conveyor system
Industrial Solutions:
- Sorting systems in the post and parcel sector
Technical Data
- Actuation using slip-on gear transmission
- Conveyor length 670–30,000 mm
- Belt width up to 1,500 mm
- Side guidance height up to 600 mm
- Conveyor speed up to 2.5 m/s
- Baggage weight up to 50 kg/m
Camel - back to top

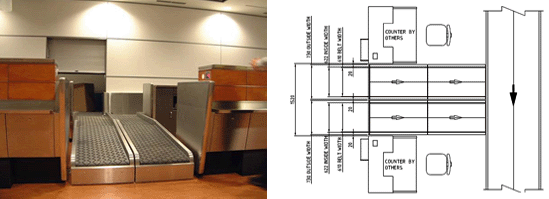

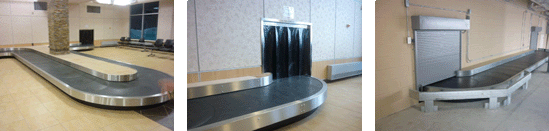

Check-In
Efficient and reliable like a camel
Compact, flexible, fixed or telescopic and perfectly serviceable. The B&F check-in »Camel« range has perfected check-in at the airport. The check-in procedure of the entire range is characterised by optimal handling by the operator and optimal accessibility for passengers. The check-in is the passenger's contact point for the entire baggage system. Here, it is important that a rapid and flawless procedure gives the passenger security, be it as a fixed design or as a telescopic design. Both have simple and rapid accessibility for maintenance and cleaning work. Depending on the throughput rate, you can choose one-belt, two-belt or three-belt systems. In the same way, the customer's requirements determine the position of the scales.
Product Features
- Ultra-simple adjustment to required baggage loading and delivery position
- Visible parts in the passenger area are made of stainless steel
- Rapid access for repairs and maintenance
- Easy accessibility for cleaning under the belts, meaning a reduced risk of fire
- Maintenance-free drive system with drum motors or gear motors and optional mechanical belt track device
- Simple and safe cable routes integrated into the components
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- In the check-in area
Industrial Solutions:
- Check-in systems in harbours
Technical Data Normal baggage
- Design as a one-belt, two-belt and three-belt system
- Conveyor speed up to 0.6 m/s
- Total length up to 4,000 mm
- Inside width between the side rails up to 700 mm
- Baggage weight up to 50 kg
Technical Data Bulky baggage
- One-belt system
- Conveyor speed up to 0.5 m/s
- Total length up to 4,000 mm
- Inside width between the side rails up to 1,200 mm
- Baggage weight up to 75 kg
Special Solutions - back to top
Mammoth
With the strength and composure of a mammoth
The B&F bulky luggage sorting belt »MAMMOTH« is used in those places where bulky luggage is collected centrally from the various bulky luggage lines and prepared for inspection. As a special solution, it can be adjusted to a huge range of conditions, such as conveyor height, positioning of the control system, belt lengths, conveying direction or conveying speed. The heart of the sorting belt is formed by two plastic link conveyors, which are characterised by a very smooth and wear-resistant surface and have a far longer life span than roller tables which have been used before. The individual pieces of luggage are transported to a certain position by the electronic link conveyor and then manually pushed off in the direction of the conveyor. This procedure makes the work of personnel considerably easier.
Product Features
- Simple adjustment to the delivery and discharge heights
- "EIS system": rapid assembly due to simple modular system, perfectly optimised for transportation
- Easy replacement of link belt modules
- Ideal for use in the area around x-ray machines
- Energy-efficient and economic design
Fields of Use
Airport Solutions:
- Sorting bulky luggage
Special Solutions
The B&F bulky luggage sorting belt »Mammoth« has been proving itself for years as an extremely flexible and adaptable product for a wide range of conditions!
